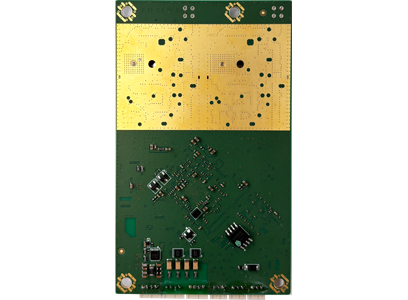

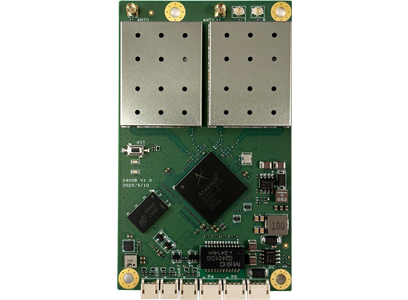

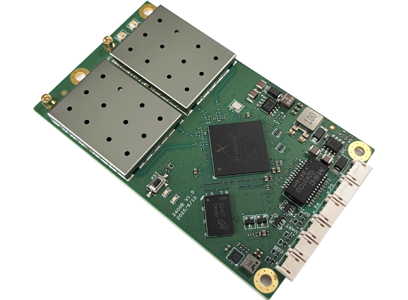

MESH2400B is a 2.4GHz 802.11n embedded wireless board launched by Zencheer. Measuring 60*100mm, it is suitable for applications such as drone networking and broadband data transmission. MESH2400B supports 2*2 MIMO and its single-channel RF output power can be up to 30dBm, demonstrating excellent RF performance. Customers can select the appropriate interface format and customize the overall dimensions to develop high-performance, high-power wireless devices.
Key Features
- Output power up to 30dBm
- 14-48V input power supported
Product Status: Production
| Operating Frequency | 2412-2462MHz |
| Channel Bandwidth | 5/10/20MHz Adjustable |
| Output Power | 1W |
| Rx Sensitivity | -90dBm |
| Modulation | OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | 80Mbps Max |
| Antenna | 2 MMCX |
| Ethernet | 2 10/100Mbps Ethernet Ports |
| Expansion | 1 USB Host 2.0 Interface 1 COM Port 4 GPIOs |
| Tx/Rx Switch Control | 1 IPX |
| Button | 1 Factory Reset Button |
| Power Supply | 9-48V DC |
| Physical Size | 50mm*66mm*10mm |
| Temp Range | Storage : -40℃~+125℃ Operating: -20℃~+65℃ |
| Weight | 21g |
| Bootloader | U-boot |
| Linux Kernel | 3.18.19 |
| Wired Network | IP Address Configurable Subnet Mask Configurable |
| Mesh Features | Operating Frequency Adjustable Channel Bandwidth Adjustable Output Power Adjustable Adhoc Mode Supported ESSID/BSSID Configurable Adaptive and Fixed Rate Supported Distance Optimization Supported RTS/CTS Configurable Link Status Display |
| Management | Web Management Supported SSH Management Supported Import/Export Configuration File Factory Reset Online Firmware Updating |
