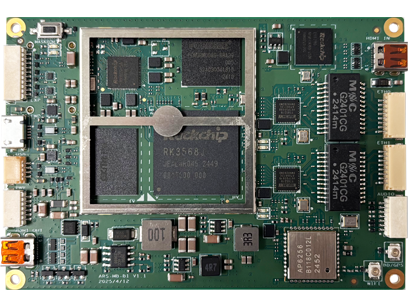

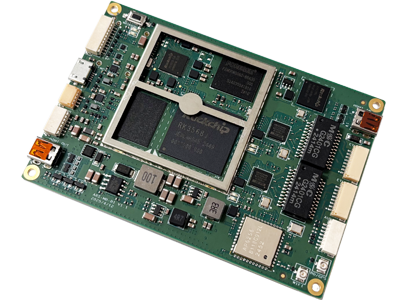

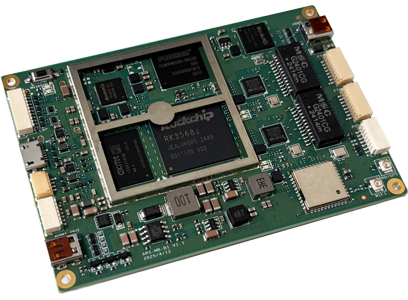

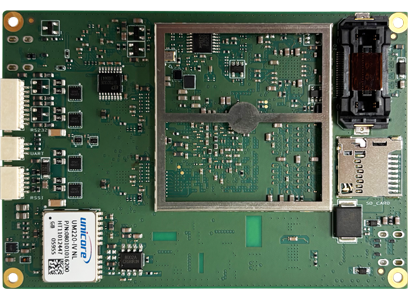

ARS-MB-B1 is a high-performance, multi-functional embedded wireless board from Zencheer. It utilizes the Rockchip RK3568 quad-core, 2GHz processor and is compatible with our ARS-RB series three-antenna RF board. Measuring only 61.5*90mm, it is suitable for applications such as drone networking, handheld devices, and backpacks. The ARS-MB-B1 features 2GB of RAM and 8GB of Flash, HDMI input and output, video encoding and decoding, voice intercom functionality, two Gigabit Ethernet ports, two RS232 serial ports, multiple GPIOs, and TF card support, facilitating user development.
Key Features
- Based on Rockchip RK3568 high performance processor
- 2GB RAM, 8GB eMMC integrated
- HDMI input/output supported
- Zencheer ARS-RB RF board supported
Product Status: Production
| CPU | Rockchip RK3568, quad-core 64-bit Cortex-A55, up to 2GHz |
| RAM | 2GB LPDDR4 |
| Flash | 8GB eMMC |
| Wireless | 2.4/5.8GHz WiFi supported Bluetooth supported BD/GPS supported Zencheer ARS-RB RF board supported |
| Multimedia | 4K 60fps H.265/H.264/VP9 video decoding supported 1080P 60fps H.265/H.264 video encoding supported |
| Interface | Power input (6 Pin) TF card (standard socket, push/push style) HDMI output (standard micro HDMI socket) HDMI input (standard micro HDMI socket) Audio (7 Pin) RS232 (9 Pin) Ethernet ETH0 (8 Pin), 10/100/1000Mbps Ethernet ETH1 (8 Pin), 10/100/1000Mbps Debug (3 Pin) Firmware download (standard micro USB) USB Host 2.0 (4 Pin) Mesh RSSI (5 Pin) Expansion (10 Pin) Board-to-board socket (40 Pin) BT/WiFi antenna (UFL) BD/GPS antenna (UFL) |
| Power Supply | 14-48V DC With reverse voltage protection |
| Physical Size | 61.5*90*12mm |
| Temp Range | Storage : -40℃~+125℃ Operating: -20℃~+65℃ |
| Weight | 46g |
Based on OpenWRT 23.05 and Rockchip 5.10.160 Linux kernel
The network function is fully normal
Multimedia services to be developed
Coming soon...
NA
