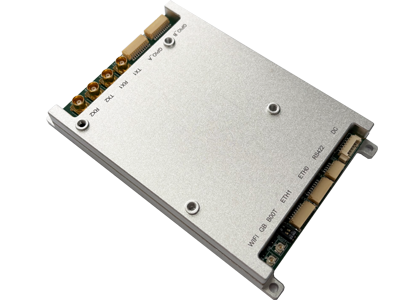

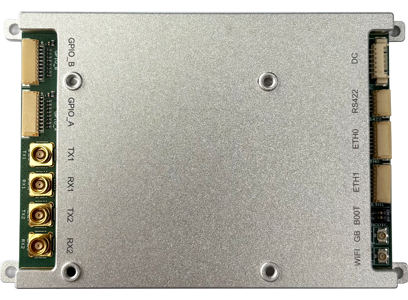

SDR-C2 is a SDR platform launched by Zencheer. It utilizes the Xilinx Zynq XC7Z035 FPGA and the ADI AD9361 wireless transceiver. Measuring 10*73 mm, it is suitable for manpack and vehicle-mounted radios. The SDR-C2 supports dual transmit and receive channel, 2.4/5.8 GHz WiFi, BD/GPS positioning, two Ethernet ports, one RS232 serial port, one RS422 serial port, and multiple GPIOs. It integrates 32MB Quad SPI Flash and 8GB eMMC, and supports SD card via an FPC cable, facilitating user development.
Key Features
- Based on Xilinx XC7Z035 and ADI AD9361
- 2.4/5.8GHz WiFi supported
- 2 10/100/1000Mbps Ethernet ports
- 1 RS232 and 1 RS422 serial port
Product Status: Hardware only, Mesh function is still under development
| CPU/FPGA | Xilinx XC7Z035-2FFG900I |
| Transceiver | ADI AD9361 |
| RAM | 1GB DDR3 |
| Storage | Winbond 32MB Quad SPI Flash 8GB eMMC (or SD card) Microchip AT24C512 EEPROM |
| Encryption Chip | Microchip ATSHA204A |
| Interfaces | DC Input (6 Pins) Power pass-through output interface (4 Pins) Debug and RS232 port (10 Pins) RS422 port (5 Pins) ETH0 (8 Pins), 10/100/1000Mbps ETH1 (8 Pins), 10/100/1000Mbps JTAG (7 Pins) PL GPIO_A (10 Pins) PL GPIO_B (10 Pins) SD Card socket (10 Pins FPC) RF Ports, 4 MCX WiFi antenna (UFL) BD/GPS antenna (UFL) |
| Power Supply | 12-48V With reverse voltage protection |
| Physical Size | 100*73*14.6mm |
| Temp Range | Storage : -40℃~+125℃ Operating: -20℃~+65℃ |
| Software Features | Vivado project available Petalinux source code available ADI IIO oscilloscope and Matlab supported |
