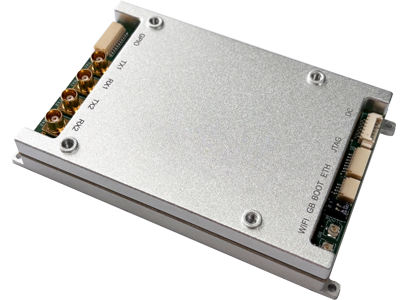

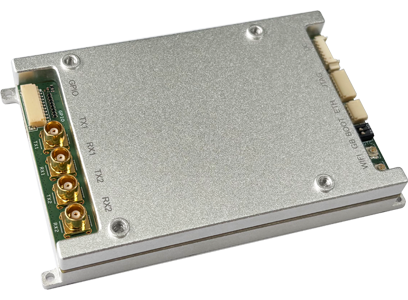

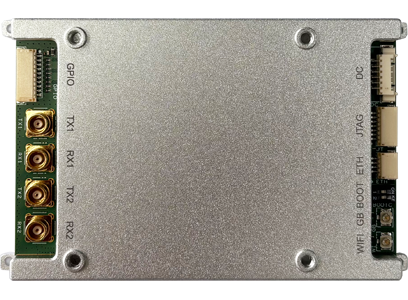

SDR-C1 is a SDR platform from Zencheer. It utilizes the Xilinx Zynq XC7Z035 FPGA and the ADI AD9361 wireless transceiver. Measuring only 59*88 mm, it is ideal for applications such as drone networking and broadband data transmission. The SDR-C1 supports dual transmit and receive channel, 2.4/5.8 GHz WiFi, BD/GPS positioning, one Ethernet port, two RS232 serial ports, multiple GPIOs, and integrated 32MB Quad SPI Flash. It supports SD cards via an FPC cable, facilitating user development.
Key Features
- Based on Xilinx XC7Z035 and ADI AD9361
- As small as 59*88mm
- 2.4/5.8GHz WiFi supported
- BD/GPS positioning supported
Product Status: Hardware only, Mesh function is still under development
| CPU/FPGA | Xilinx XC7Z035-2FFG900I |
| Transceiver | ADI AD9361 |
| RAM | 1GB DDR3 |
| Storage | Winbond 32MB Quad SPI Flash Microchip AT24C512 EEPROM |
| Encryption Chip | Microchip ATSHA204A |
| Interfaces | DC Input (6 Pins) Power pass-through output interface (4 Pins) Debug and RS232 ports (10 Pins) ETH0 (4 Pins), 10/100Mbps JTAG (7 Pins) PL GPIO (10 Pins) SD Card socket (10 Pins FPC) RF Ports, 4 MCX WiFi antenna (UFL) BD/GPS antenna (UFL) |
| Power Supply | 12-48V With reverse voltage protection |
| Physical Size | 59*88*12.9mm |
| Temp Range | Storage : -40℃~+125℃ Operating: -20℃~+65℃ |
| Software Features | Vivado project available Petalinux source code available ADI IIO oscilloscope and Matlab supported |
