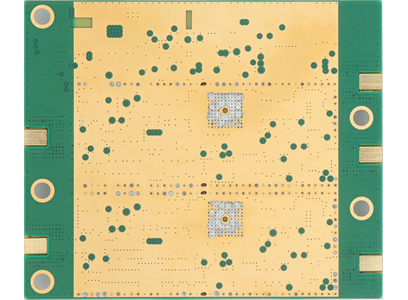

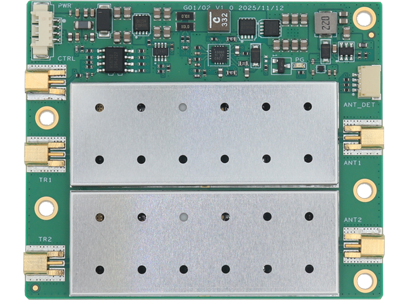

GPA-2 is a dual-channel 2*2 W TDD RF power amplifier with integrated transmit/receive (T/R) functionality launched by Zencheer. Its compact size is only 69* 58 mm. It operates over the 500-1500MHz band, provides high-linearity output, and can be used with various wireless cards/modules supporting standards such as WiFi, LTE, and DVB-T. GPA-2 is an upgraded version of the EPA-2, compared with EPA-2, it adds an open-circuit detection function on the antenna port, improving overall system reliability.
Key Features
- 2*2 MIMO are supported
- DCDC boost integrated which supports wide input range
- Includes open-circuit detection on the antenna port
- Compact size and lightweight, suitable for handheld device
- Output power can be up to 2W
Product Status: Production
| Operating Frequency | 1420-1530MHz typical Customizable to meet customer requirements: 500-1500MHz |
| Bandwidth | 110MHz typical Customizable to meet customer requirements: 150MHz Max |
| Tx Gain | 12dB typical (for CX module) Customizable to meet customer requirements: 35dB Max |
| Output Power | 33±1dBm |
| EVM | ≤-25dB@33dBm ≤-28dB@30dBm |
| Rx Gain | 6dB typical Customizable to meet customer requirements: 12dB Max |
| RF Input/Output Interface | MMCX |
| Control Interface | 1 MMCX Enable Tx when high Enable Rx when low Switching Time<1us |
| Detect Interface | 4-pin, 1.0 mm-pitch socket (JST SM04B-SRSS-TB) |
| Power Supply | 12-27V |
| Physical Size | 69*58*5.7mm |
| Weight | 30g |
| Operating Range | Storage: 40℃~+125℃ Operation: -20℃~+65℃ |
| Power Consumption | 15W@70% Tx duty cycle |
