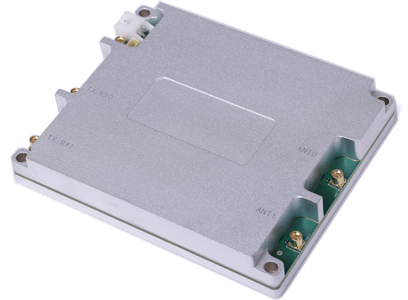

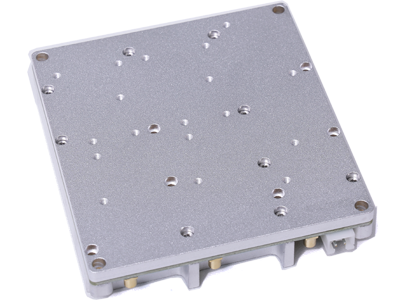

DPA-5 is a dual-channel 2*5 W TDD RF power amplifier with integrated transmit/receive (T/R) functionality launched by Zencheer. It measures 88*77 mm, operates over the 500–1500MHz band, and delivers high-linearity output. It can be used with various wireless cards/modules supporting standards such as WiFi, LTE, and DVB-T.
Key Features
- 2*2 MIMO are supported
- DCDC boost integrated which supports wide input range
- Customizable operating frequency, bandwidth and gain to meet customer requirements
- Output power can be up to 5W
Product Status: Production
| Operating Frequency | 1420-1530MHz typical Customizable to meet customer requirements: 500-1500MHz |
| Bandwidth | 110MHz typical Customizable to meet customer requirements: 150MHz Max |
| Tx Gain | 16dB typical Customizable to meet customer requirements: 35dB Max |
| Output Power | 37±1dBm |
| EVM | ≤-25dB@37dBm ≤-28dB@34dBm |
| Rx Gain | 6dB typical Customizable to meet customer requirements: 12dB Max |
| Control Interface | MMCX or 4-pin 1.0 mm-pitch connector (JST BM04B-SRSS-TB) Enable Tx when high Enable Rx when low Switching Time<1us |
| Power Supply | 12-27V |
| Physical Size | 88*77*15.6mm (SMA connector not included) |
| Operating Range | Storage: 40℃~+125℃ Operation: -20℃~+65℃ |
| Power Consumption | 50W @ 77% Tx duty cycle |
